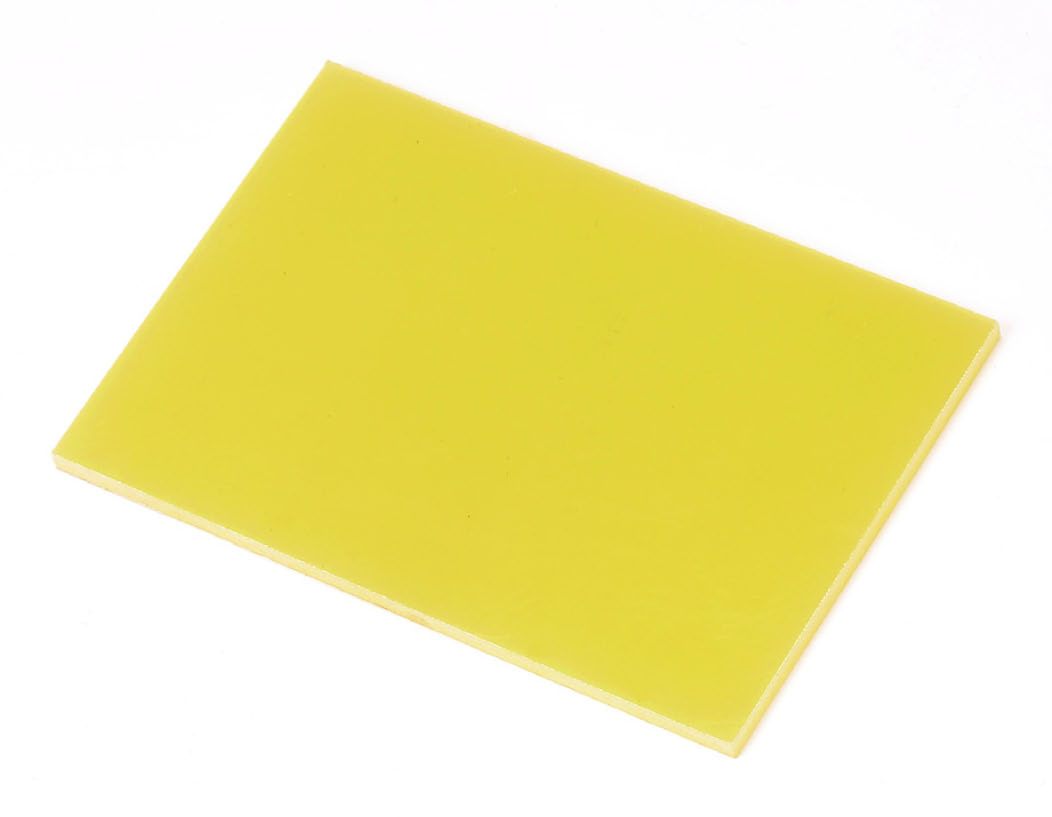

You are here : Home > Products > Insulation Sheet Series > 3240 Epoxy Fiber Glass Cloth Laminated Sheet Grade A
Thickness: 0.3mm-80mm
Length: 1020*2020mm
Color:Yellow(other colors can be customized)
3240 Epoxy fiber glass cloth laminated sheet (grade A): dip alkali-free glass fiber cloth in epoxy phenolic resin, then bake and heat press. It has good mechanical and dielectric properties with thermostability and moisture resistivity and good machinability. The thermostability grade is B.It is widely used in generator,motor,electronic apparatus as insulating material and components. It is also suitable under oil pressure of transformer and wet environment.
Performance requirement
|
NO |
Item |
Unit |
Remark |
|
|
1 |
Vertical bending strength |
MPa |
≥340 |
- |
|
2 |
Parallel impact strength (simply-supported beam method) |
KJ/ |
≥33 |
Either one meeting this requirement is acceptable. |
|
3 |
Parallel impact strength (cantilever beam method) |
kJ/ |
≥34 |
|
|
4 |
Vertical electric strength (in oil of 90℃±2℃,1mm) |
MV/m |
≥14.2 |
- |
|
5 |
Parallel breakdown voltage (in oil of 90℃±2℃) |
kV |
≥35 |
- |
|
|
Dielectric constant (below 48Hz-62Hz) |
- |
≤5.5 |
- |
|
7 |
Dielectric constant (below 1MHz) |
- |
≤5.5 |
|
|
8 |
Thermostability |
℃ |
150 |
- |
|
9 |
Oil resistivity in transformer oil 4h |
℃ |
130 |
- |
|
10 |
Tensile strength lengthways horizontal |
MPa |
≥314 ≥216 |
- |
|
11 |
Adhesive strength |
N |
≥5600 |
- |
|
12 |
Dielectric dissipation factor (below 48Hz-62Hz ) |
- |
≤0.04 |
Either one meeting this requirement is acceptable. |
|
13 |
Dielectric dissipation factor (below 1MHz ) |
- |
≤0.04 |
- |
|
14 |
Density |
g/ cm3 |
(1.8-2) |
- |
