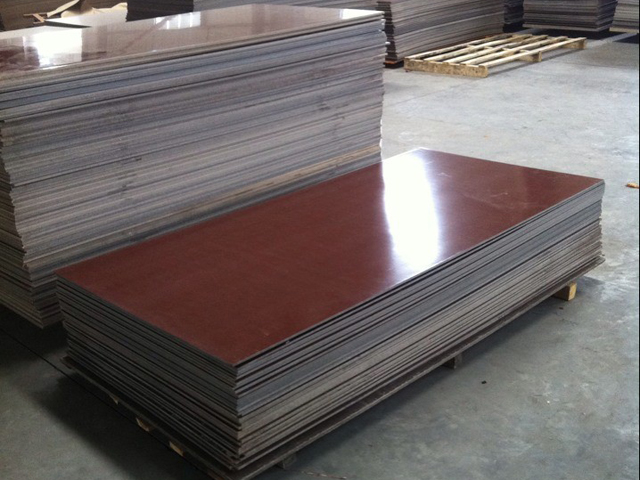

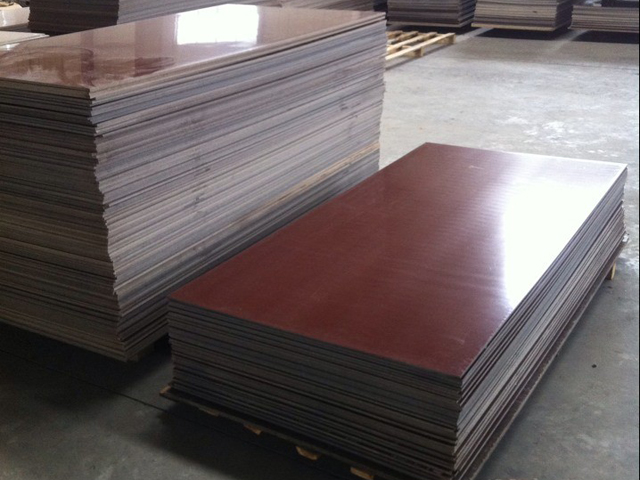

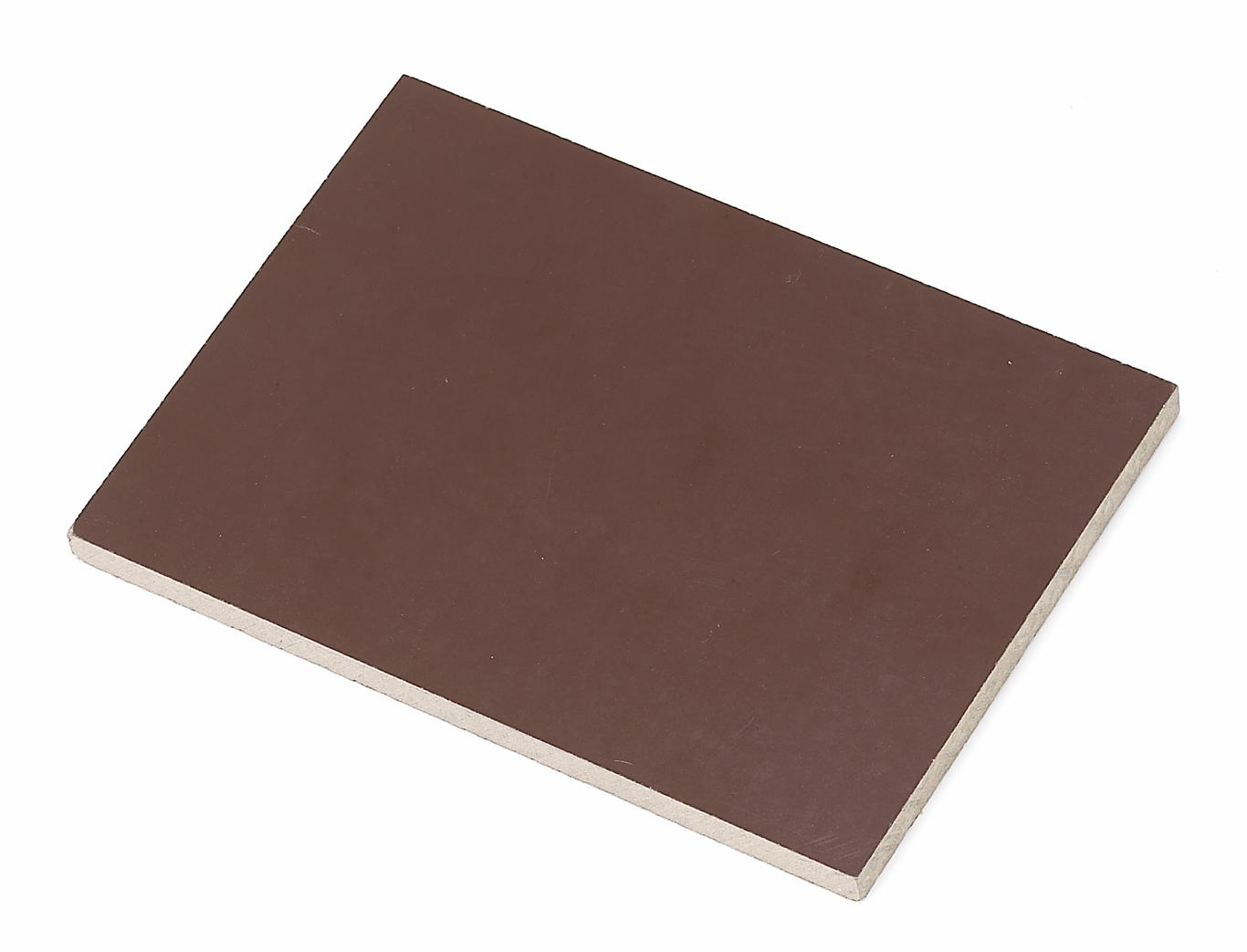

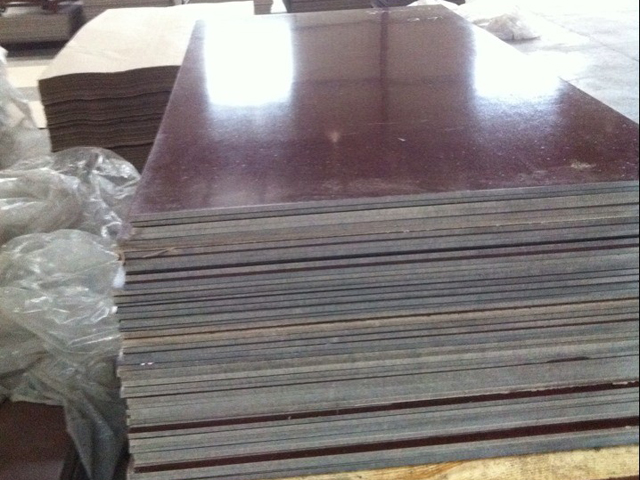

3021 Phenolic Paper Laminated Sheet
3021 Phenolic Paper Laminated Sheet3021 Phenolic Paper Laminated Sheet3021 Phenolic Paper Laminated Sheet3021 Phenolic Paper Laminated Sheet
Product Info:
Product name: 3021 Phenolic Paper Laminated Sheet
Product Catalog: Insulation Sheet Series
OnLine Service:
Print this Page Bookmark this
Skype Online E-mail Us
PDF Download
【Prev Products】【Next Products】
Description Send Inquiry


Thickness: 1mm-60mm

Length: 1020*2020mm,1220*2440mm,1020*1220mm.

Color: Brown



Definition and application:

3021 phenolic paper laminated sheet produced by our company has good quality and competitive price, at the leading level of domestic insulation materials industry.

3021 phenolic paper laminated sheet is made up of paper impregnated with phenolic resin by baking and heat pressing. This product applies to components in insulation system of motor, electrical equipment which has high requirement on mechanical property and also applies to transformer oil. It is usually used in low-voltage apparatus, such as base board of distribution cabinet.

Physical, mechanical and dielectric properties

NO.

Item

Unit

Index value

1

Density

g/cm3

1.45

2

Thermostability: 20mm or below

20mm or above

℃

115

90

3

Bending strength(3mm or above)

Mpa

≥117.6

4

Tensile strength

Mpa

≥90

5

Adhesive strength

N

≥3136

6

Impact-resistance strength

KJ/㎡

≥15

7

Parallel insulation resistance:normal

after becoming damp

KΩ

≥1.0×103

≥1.0×101

8

Vertical dielectric strength: withstand voltage for 5 minutes in transformer oil,1mm.

MV/m

≥16

9

Parallel breakdown voltage:withstand voltage for 5 minutes in transformer oil. Temperature 20℃±5℃.

KV

≥14
